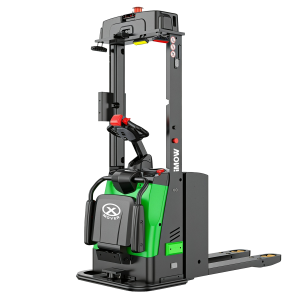

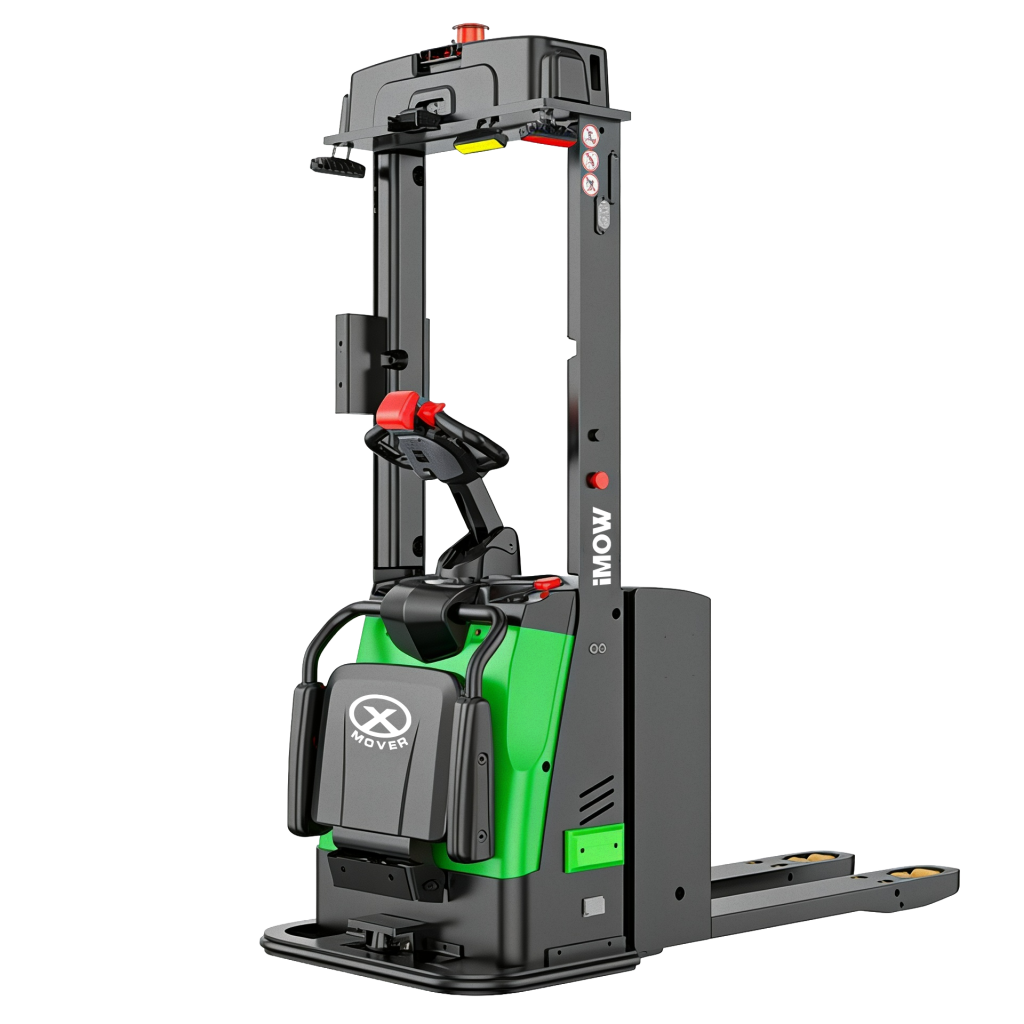

AMR
XPL201
Nationwide After-Sales Support
Technical Specifications
Model
XPL201
Type
High-Speed Heavy-Duty Handling AMR
Navigation
SLAM sensor / reflector
Load capacity
2000 kg
Lifting height
110 mm
Dimensions (L/W/H)
2102/848/2179 mm
Service weight
685 kg
Travel speed, laden/unladen
1.5/2 m/s
Positioning accuracy
±10 mm
Max. gradeability, laden/unladen
8/16%
Battery voltage/nominal capacity
24V/205Ah
Description product
Move more, faster, over greater distances. The EP XPL301 is a high-speed, heavy-duty handling AMR rated for 3-ton loads — built for large-scale, long-distance transportation in wide-area facilities where throughput matters most.
2,000 kg High-Speed Heavy-Duty Handling AMR
Heavy Loads, High Speed, Long Distance
Travelling at up to 2 m/s unladen, the XPL201 is engineered for material-intensive handling and storage across expansive warehouse and production floors.
Why the XPL201?
Long-distance transportation
Suitable for long-distance, large-scale transportation across wide areas, keeping material flowing between distant points on the floor.
Built for heavy-load conditions
A 3000 kg load capacity and reinforced structure suit high-speed operation under sustained heavy-load conditions.
High material density
Suitable for material-intensive handling and storage, keeping high-volume operations moving efficiently.
Precise, reliable navigation
SLAM sensor and reflector navigation deliver ±10 mm positioning accuracy even at higher travel speeds.
Ideal Applications
Suited for large-scale warehouses, distribution centres, and manufacturing plants that need fast, heavy-duty material transport over long, wide-area routes.
